Bently Nevada 3500/82 Stator Insulation Monitoring System
The Bently Nevada 3500/82 Stator Insulation Monitoring System is an online electrical condition monitoring module designed to evaluate the health of motor stator insulation systems while the motor remains in operation.
Unlike traditional insulation testing methods that require equipment shutdown, the 3500/82 continuously monitors insulation-related parameters during normal motor operation. It measures changes in stator insulation condition by monitoring leakage current, voltage, temperature, and other electrical parameters, allowing maintenance teams to identify insulation deterioration trends before unexpected motor failures occur.

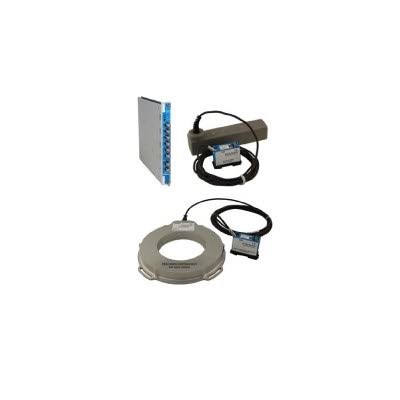

The 3500/82 is part of the Bently Nevada 3500 Machinery Monitoring System platform and was designed for monitoring medium and high-voltage industrial motors up to 7.5 kV and 1000 Amps. It uses inputs from dedicated sensors, including High Sensitivity Current Transformers (HSCTs) and High Voltage Sensors (HVS), to provide continuous insulation condition information.
The Bently Nevada 3500/82 Stator Insulation Monitoring System is now a retired/discontinued product. Facilities with existing installations often require technical verification, product identification support, and guidance for suitable upgrade or replacement solutions.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Name | Bently Nevada 3500/82 Stator Insulation Monitoring System |
| Manufacturer | Bently Nevada |
| Product Status | Retired / Discontinued |
| Product Type | Stator insulation condition monitoring module |
| Monitoring Platform | Bently Nevada 3500 Machinery Monitoring System |
| Primary Function | Online monitoring of motor stator insulation condition |
| Measurement Method | Leakage current and electrical parameter monitoring |
| Application | Condition monitoring of medium and high-voltage motors |
| Maximum Motor Rating | Up to 7.5 kV and 1000 Amps |
| Module Configuration | 9-channel monitoring module |
| Current Inputs | High Sensitivity Current Transformer (HSCT) inputs |
| Voltage Inputs | High Voltage Sensor (HVS) inputs |
| Temperature Inputs | 3 × 4–20 mA temperature inputs |
| Measured Parameters | Leakage current, dissipation factor, voltage, frequency, and temperature |
| Input Frequency Range | 40 to 70 Hz |
| Alarm Function | Configurable insulation condition alarms and trend monitoring |
| Display Compatibility | Bently Nevada 3500/94 Display Module |
| Configuration Software | Bently Nevada 3500 Rack Configuration Software |
| Historical Trending | Long-term insulation condition trending and comparison analysis |
| Buffered Outputs | Diagnostic buffered outputs for monitoring signals |
| Communication Platform | Bently Nevada 3500 System Architecture |
| Protection Function | Designed for condition monitoring; not intended for automated machinery protection |
What Was Bently Nevada 3500/82 Stator Insulation Monitoring System Used For?
The Bently Nevada 3500/82 Stator Insulation Monitoring System was used to continuously evaluate the electrical health of motor stator insulation during normal operating conditions.
Motor stator insulation can deteriorate over time due to:
- Thermal stress
- Electrical stress
- Moisture and contamination
- Insulation aging
- Operating environment conditions
The 3500/82 helped maintenance teams identify changes in insulation performance by monitoring electrical characteristics and trending insulation condition over time.
The system was used for monitoring:
- Stator insulation leakage current
- Insulation condition trends
- Dissipation factor changes
- Motor operating voltage
- Motor frequency
- Motor temperature conditions
By identifying abnormal insulation behavior early, plants could schedule maintenance activities before insulation failure resulted in unexpected downtime.
Applications of Bently Nevada 3500/82 Stator Insulation Monitoring System
The Bently Nevada 3500/82 Stator Insulation Monitoring System was commonly used for:
High-Voltage Industrial Motors
- Large AC motors
- Critical process motors
- Medium and high-voltage motor applications
Motor-Driven Equipment
- Compressor drive motors
- Pump drive motors
- Fan and blower motors
- Other critical rotating equipment motors
Industrial Facilities
- Power generation plants
- Oil and gas facilities
- Petrochemical plants
- Water treatment facilities
- Heavy manufacturing plants
The system was especially valuable in applications where motor failure could result in significant production losses and costly downtime.
